CW69

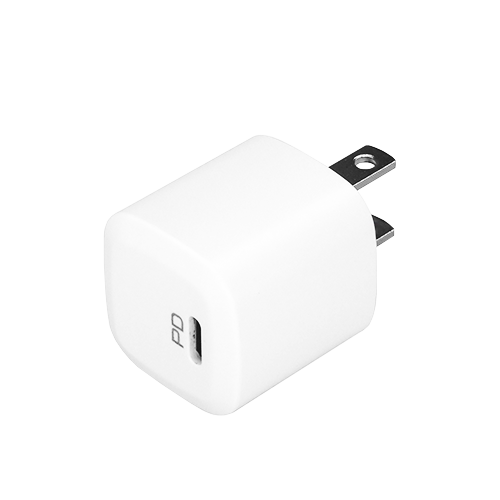

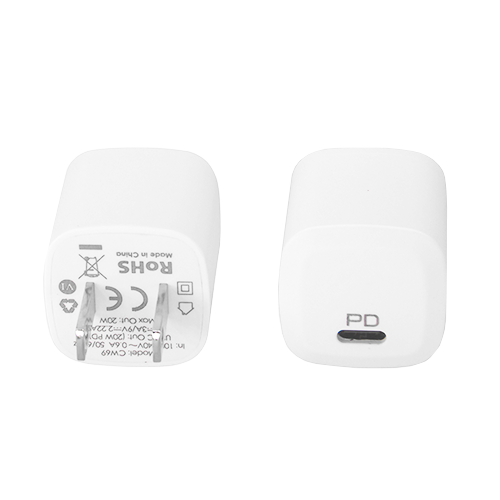

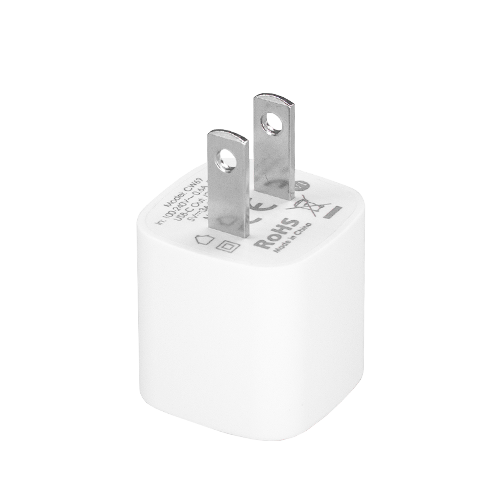

Product Model:CW69
Charging Mode:PD Fast charge,QC fast charge
Interface:Single Type-C port
Input:100-240V-0.6A 50Hz
Output:5V=3A/9V=2.22A/12V1.67A
Power:20W
Dimension:28.5*28.5*30.5mm
Weight:33g
Housing Material:PC
Protect Function:output over-current protection,overvoltage protection,over-temperature protection,short-circuit protection
Applicable Environment:indoor use
Certification Scope:CCC、Ctuvs、PSE、BSMI、DOE、FCC、Nrcan+CEC、CP65、ROHS
Product Introduction

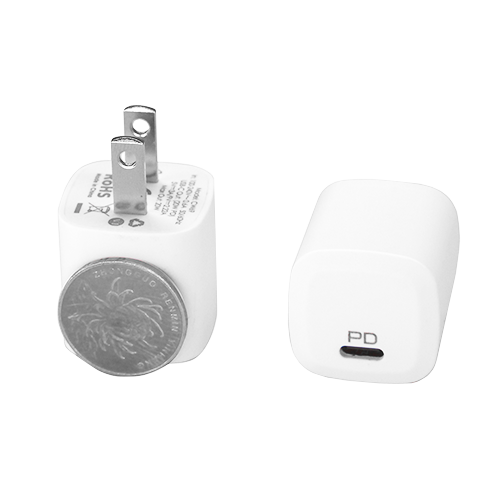

1.Ultra-small size which is similar to Apple 5W charger and only weighs 33 g in total

2.Single C port PD support 20W fast charging function, high power density;

3.Compatible with various charging protocols to meet the charging requirements of different terminal devices;PD3.0、QC2.0、QC3.0、Apple2.4A、BC1.2、Samsung AFC、Huawei FCP protocol;

4.Product appearance is very small and round, easy to carry, user experience is better.
